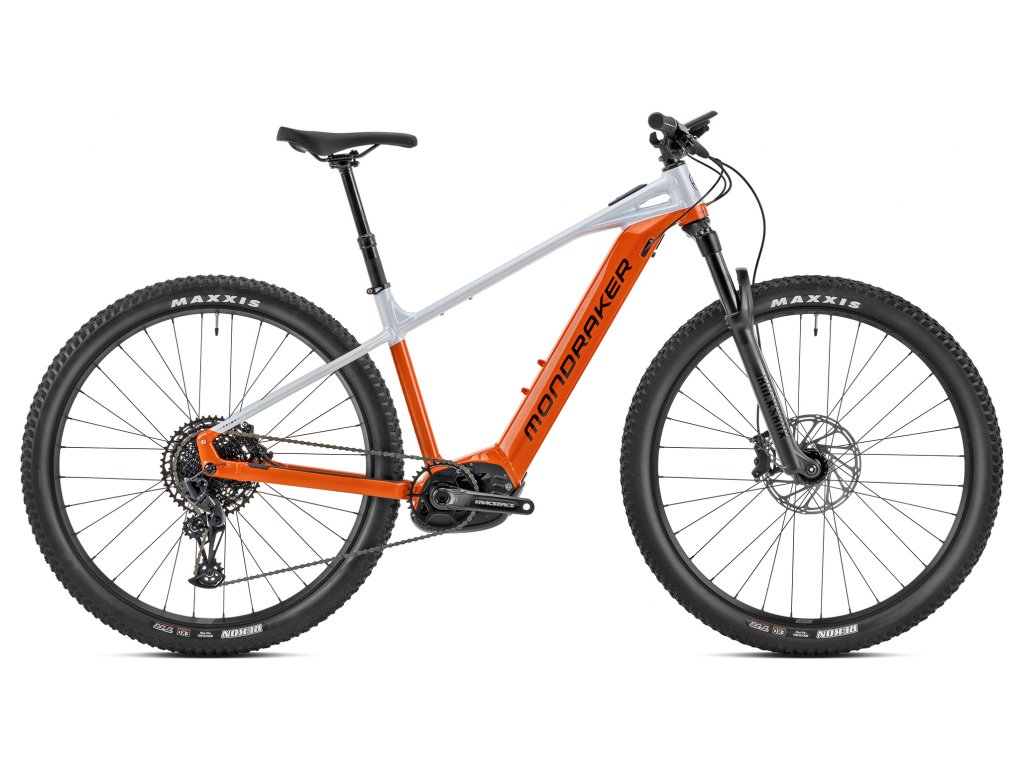

MONDRAKER Prime R 2023
rám: Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
vidlice: RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
hlavové složení: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
přehazovačka: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
řazení: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
brzdové páčky: Sram DB8, tool-free reach adjust
kliky: Race Face Aeffect ebike, 165mm
řidítka: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
sedlo: MDK ebike black
náboj přední: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz: Sram SX Eagle, 12s, Powerlock
kazeta: Sram PG-1210, 11-50T, 12s
dráty: CN round stainless steel
ráfky: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
pláště: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
gripy: Onoff Twin, 1lock-on, 135mm
přední brzda: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadní brzda: Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
převodník: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
patka k přehazovačce: Mondraker M068
motor+baterie: Bosch Performance Line CX Cruise (25Km/h) Smart System , Bosch Powertube 750Wh, Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
